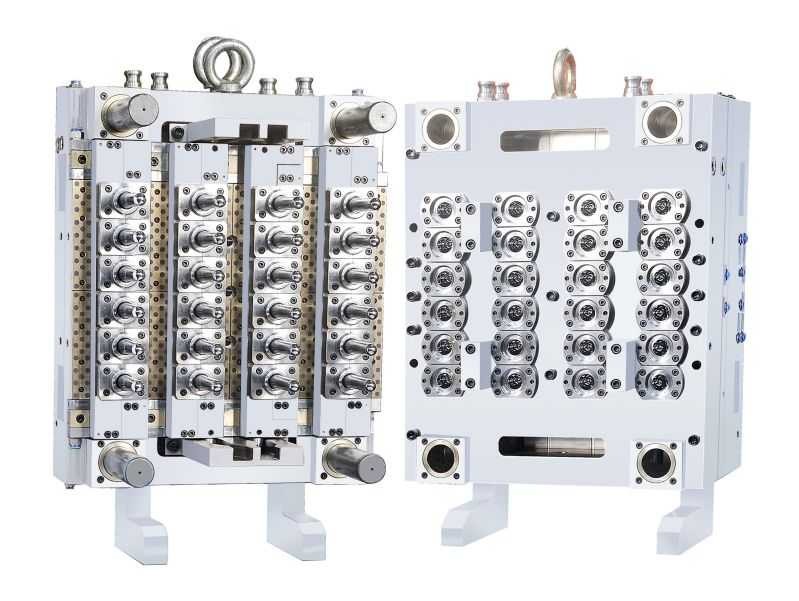

24-cavity PET preform mold for preforms with PCO1810, Pco1881 necks, can be used for water bottles, carbonated beverage bottles and other beverages. It is recommended to use a hot runner system with a shut-off valve gate to make the preform mold, using this system, the feeding and mold opening/closing can be synchronized, and there is no "gate" on the injection gate, which saves the mold's holding time and cycle time. It is versatile and can meet various requirements for preform molding. We adopt the latest design and optimized mold structure, and our cooling and exhaust are also optimized.
For example, a 28mm 16g PET preform mold can reach 15 seconds per shot.
PET PREFORM MOULD DETAILS:
PRC Mold is a professional preform mold manufacturer. We provide mold manufacturing services worldwide. We have been in this industry for more than 15 years and are very competitive. We have the ability to guarantee various sizes and precision levels of molds.
| Product Name | 24 cavities bottle preform mould. |
| Core & cavity steel | S136. |
| Mould Base | P20，4cr13，standard mould base. |
Steel Hardness | HRC 32-35 for sliders and stripper plate. |
| HRC 49-51 for cavities and core. | |
| HRC 49-51 for neck ring and lock ring. | |
| Cavities Number | 1x12，1x24，1x32，1x48，1x64，1x72. |
| Plastic Material | PET resin. |
| Injection System | Valve gate，short gate，long gate. |
| Cycle Time | Depend on bottle preform weight. |
| Ejector System | Stripper plate. |
| Mould Life | Above 3 000 000 shots. |
| Making Mold Time | 50-60 days. |
| Warranty Time | 1 year. |
24 Cavities Bottle Preform Molds Feature：
| 1，Bottle preform weight：10-210 grams，bottle neck size：28mm，30mm，38mm，48mm. | |
| 2，Mould steel and other parts are made of Chinese stainless steel or imported stainless steel. | |
| 3，Cavity water flow adopts spiral type independent of cycle structure which is good for fast cooling of preform. | |
| 4，After special heat treatment, the hardness can reach HRC49-51. | |
| 5，The core and lock ring adopt a taper matching design, is conducive to exhaust and easy to solidify the neck. | |
| 6，Double tapered neck ring for high injection force and no flash. | |
| 7, The mold has stable performance and long life, creating value for customers. | |
| 8, Adopt needle valve hot runner system, short tail and long tail are available for customers to choose. | |
| 9, Each mold is electroplated to provide long-term rust prevention. |
| Cavity No | Neck size | Application |
| 12 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 24 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 32 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 48 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 64 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 72 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |

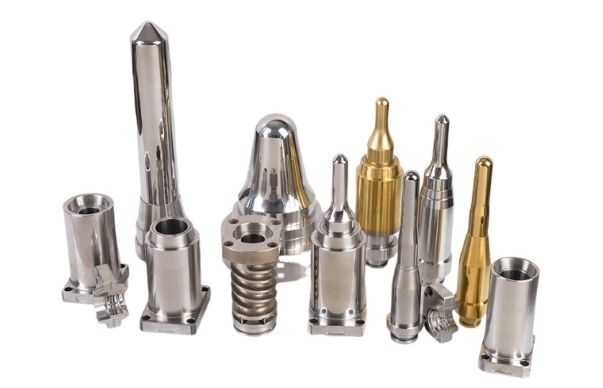

Main Parts of Bottle Preform Mould:
1. The core mold parts are made of S136 high-strength stainless steel, and the hardness after processing can reach HRC49-51 degrees, ensuring the service life of the mold.
2. The core mold adopts a taper locking design, which is convenient for injection molding exhaust and ensures that there is no shortage of materials;
3. The neck ring adopts a double-taper locking design, which is accurate in positioning, more durable, and can withstand high-pressure injection molding;
4. The cavity water channel adopts a spiral independent fast circulation structure to ensure a fast cycle time;

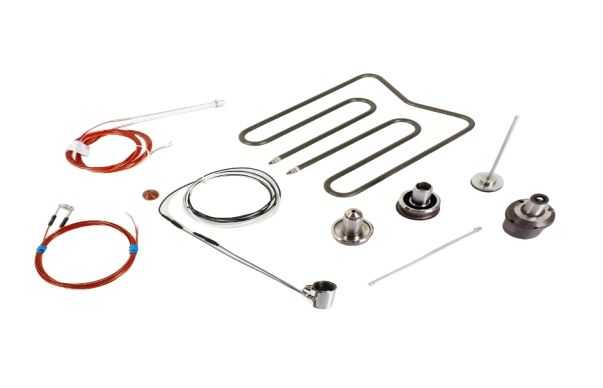

1.Hot runner electrical components and core parts are imported from Germany or Canada and are interchangeable with internationally renowned brands.
2.Parts are interchangeable;
3.Double-pin insertion temperature control sensor, maintenance-free design, more accurate detection of hot runner plate temperature.
