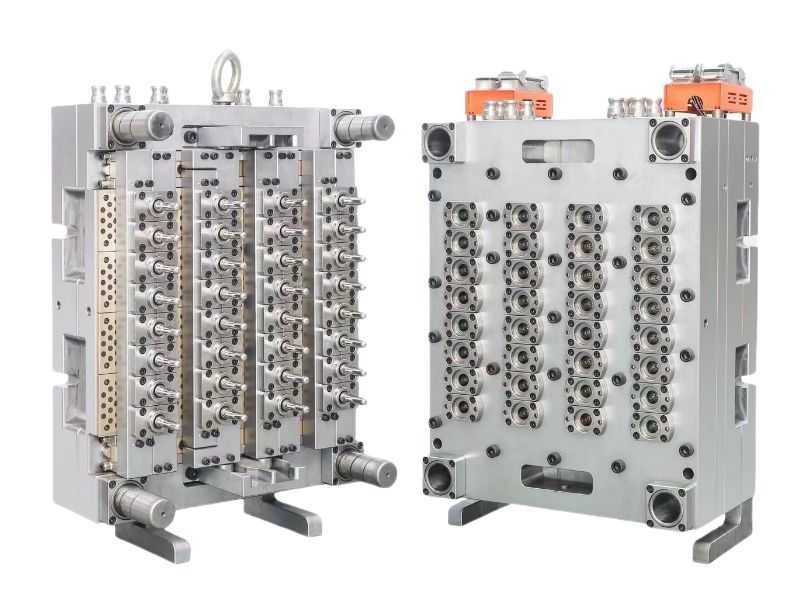

32 cavities pet preform mould

32-cavity PET preform mold, suitable for preforms with 29/25 and 30/25 necks, common weight is 10g to 20g. Both necks are 30mm, only for making water bottles. Needle valve hot runner system is recommended for preform mold, with shut-off nozzle controlled by pneumatic valve. Multi-stage double taper positioning technology is adopted, each cavity has a separate independent mold clamping device, and a multi-stage taper positioning system is adopted to ensure mold concentricity (eccentricity within 0.05-0.06mm). The steel is stainless steel, the core and cavity can be selected from S136, 636, 632, ASSAB S136, and the mold frame is P20 or 4Crl3, depending on customer needs. The size of the 32-cavity mold is about 800x550x540mm, suitable for 250-ton PET preform injection molding machine. For example, the injection speed of 30mm 129 PET preform mold can reach 10 seconds per injection.

PET PREFORM MOULD DETAILS:

PRC Mold is a professional preform mold manufacturer. We provide mold manufacturing services worldwide. We have been in this industry for more than 15 years and are very competitive. We have the ability to guarantee various sizes and precision levels of molds.

Product Name	32 cavities bottle preform mould.
Core & cavity steel	S136.
Mould Base	P20，4cr13，standard mould base.
Steel Hardness	HRC 32-35 for sliders and stripper plate.
	HRC 49-51 for cavities and core.
	HRC 49-51 for neck ring and lock ring.
Cavities Number	1x12，1x24，1x32，1x48，1x64，1x72.
Plastic Material	PET resin.
Injection System	Valve gate，short gate，long gate.
Cycle Time	Depend on bottle preform weight.
Ejector System	Stripper plate.
Mould Life	Above 3 000 000 shots.
Making Mold Time	50-60 days.
Warranty Time	1 year.

32 Cavities Bottle Preform Molds Feature：

1，Neck size: Pco1810, Pco1881, Weight: from 10g to 60g, Gate: Pin valve type.
2，Mould steel and other parts are made of Chinese stainless steel or imported stainless steel.
3，Cavity water flow adopts spiral type independent of cycle structure which is good for fast cooling of preform.
4，After special heat treatment, the hardness can reach HRC49-51.
5，The core and lock ring adopt a taper matching design, is conducive to exhaust and easy to solidify the neck.
6，Double tapered neck ring for high injection force and no flash.
7, The mold has stable performance and long life, creating value for customers.
8, Adopt needle valve hot runner system, short tail and long tail are available for customers to choose.
9, Each mold is electroplated to provide long-term rust prevention.
10,It features a balanced hot runner system and shut-of valve gate to prevent stringing on the injection gate.

Cavity No	Neck size	Application
12 cavities	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily , edible oil.
24 cavities	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily , edible oil.
32 cavities	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily , edible oil.
48 cavities	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily , edible oil.
64 cavities	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily , edible oil.
72 cavities	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily , edible oil.

Main Parts of Bottle Preform Mould:

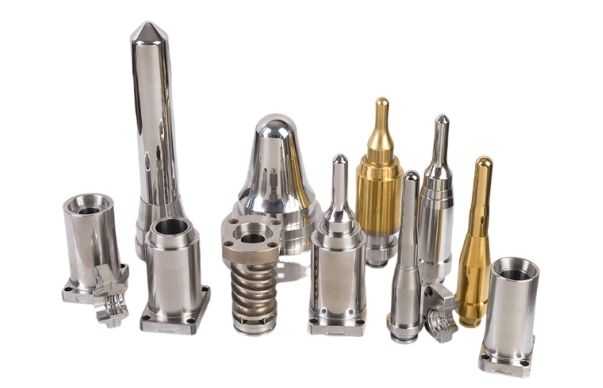

bottle preform mold parts.jpg 1. The core mold parts are made of S136 high-strength stainless steel, and the hardness after processing can reach HRC49-51 degrees, ensuring the service life of the mold.

2. The core mold adopts a taper locking design, which is convenient for injection molding exhaust and ensures that there is no shortage of materials;

3. The neck ring adopts a double-taper locking design, which is accurate in positioning, more durable, and can withstand high-pressure injection molding;

4. The cavity water channel adopts a spiral independent fast circulation structure to ensure a fast cycle time;

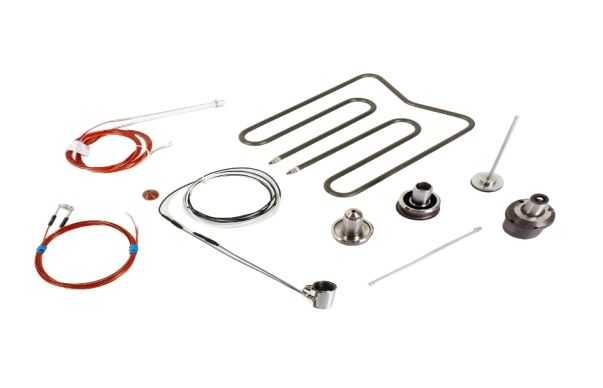

bottle preform mould parts.jpg 1.Hot runner electrical components and core parts are imported from Germany or Canada and are interchangeable with internationally renowned brands.
