Wide-mouth jar preforms can have neck sizes ranging from 53mm to 120mm. Wide-mouth jar preform molds are used to make various types of candy and nut packaging. This type of mold is designed with a valve gate system and small runner bumps. The mold can be made of a variety of materials, including PP, PS, SAN, and HDPE. Generally speaking, a 28mm neck is suitable for a 1-liter mineral water bottle, while a 120mm neck weighing 100 grams is suitable for a 4-kilogram jar.

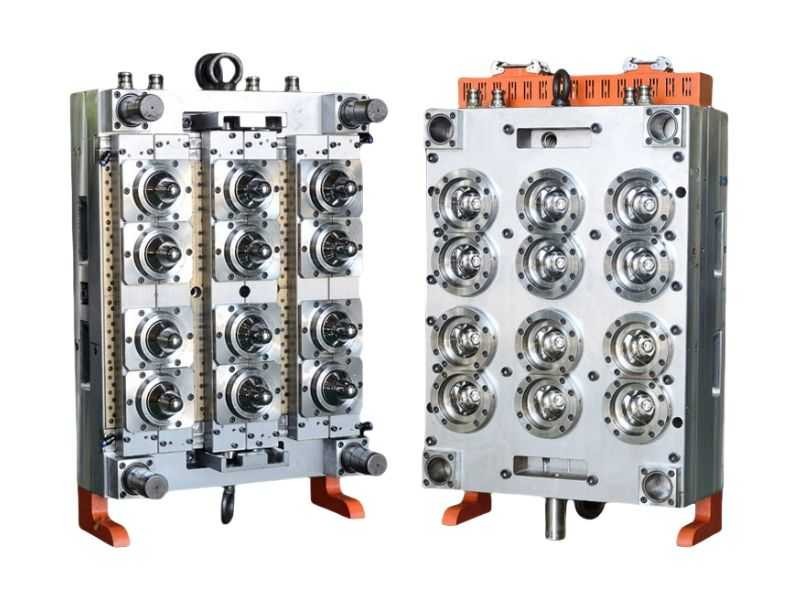

PET PREFORM MOULD DETAILS:
PRC Mold is a professional preform mold manufacturer. We provide mold manufacturing services worldwide. We have been in this industry for more than 15 years and are very competitive. We have the ability to guarantee various sizes and precision levels of molds.
| Product Name | Wide mouth jar pet preform mould. |
| Core & cavity steel | S136. |
| Mould Base | P20，4cr13，standard mould base. |
Steel Hardness | HRC 32-35 for sliders and stripper plate. |
| HRC 49-51 for cavities and core. | |
| HRC 49-51 for neck ring and lock ring. | |
| Cavities Number | 1x12，1x24，1x32，1x48，1x64，1x72. |
| Plastic Material | PET resin. |
| Injection System | Valve gate，short gate，long gate. |
| Cycle Time | Depend on bottle preform weight. |
| Ejector System | Stripper plate. |
| Mould Life | Above 3 000 000 shots. |
| Making Mold Time | 50-60 days. |
| Warranty Time | 1 year. |
Wide mouth jar pet preform mould：
| 1，Neck size: 53mm to 126mm, Weight: from 25g to 250g, Provide Customization. | |
| 2，Mould steel and other parts are made of Chinese stainless steel or imported stainless steel. | |
| 3，Cavity water flow adopts spiral type independent of cycle structure which is good for fast cooling of preform. | |
| 4，After special heat treatment, the hardness can reach HRC49-51. | |
| 5，The core and lock ring adopt a taper matching design, is conducive to exhaust and easy to solidify the neck. | |
| 6，Double tapered neck ring for high injection force and no flash. | |
| 7, The mold has stable performance and long life, creating value for customers. | |
| 8, Adopt needle valve hot runner system, short tail and long tail are available for customers to choose. | |
| 9, Each mold is electroplated to provide long-term rust prevention. | |
| 10,It features a balanced hot runner system and shut-of valve gate to prevent stringing on the injection gate. |
| Cavity No | Neck size | Application |
| 12 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 24 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 32 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 48 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 64 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |
| 72 cavities | 48mm, 38mm,30/25,20/25, PCO1881, PCO1810 | Water, Juice, CSD, Daily , edible oil. |

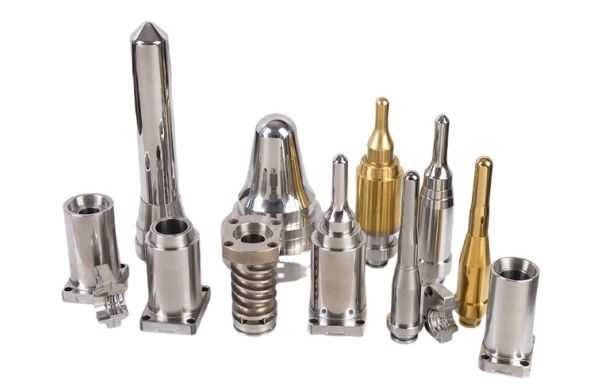

Main Parts of Bottle Preform Mould:
1. The core mold parts are made of S136 high-strength stainless steel, and the hardness after processing can reach HRC49-51 degrees, ensuring the service life of the mold.
2. The core mold adopts a taper locking design, which is convenient for injection molding exhaust and ensures that there is no shortage of materials;
3. The neck ring adopts a double-taper locking design, which is accurate in positioning, more durable, and can withstand high-pressure injection molding;
4. The cavity water channel adopts a spiral independent fast circulation structure to ensure a fast cycle time;

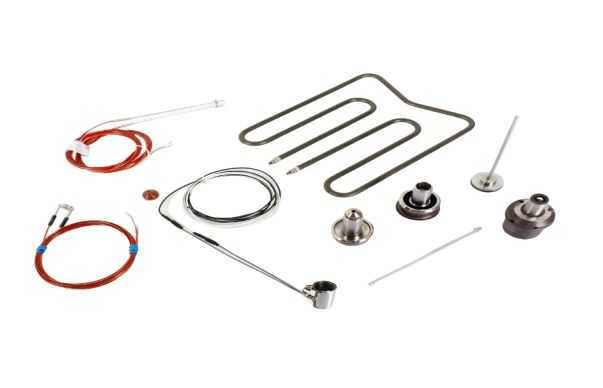

1.Hot runner electrical components and core parts are imported from Germany or Canada and are interchangeable with internationally renowned brands.
2.Parts are interchangeable;
3.Double-pin insertion temperature control sensor, maintenance-free design, more accurate detection of hot runner plate temperature.
